Aplicación:
for todos los motores 1.5L-2.5L
for todos los 4 / 6 cilindros
Caballos de fuerza: Capaz de aumentar los caballos de fuerza hasta 420BHP
Especificación
Brida de entrada de escape (colector turbo): Patrones de brida de 4 pernos T3
Brida de salida de escape (bajante): Brida de banda en V
Compresor
Ajuste del compresor: 48.1
Diámetro del inductor del compresor: 52,7 mm
Diámetro del exductor del compresor: 76 mm
Compresor A/R: 0,5
Salida del compresor: 78 mm
Entrada del compresor: 51,5 mm
Turbina
Ajuste de turbina: 74.2
Diámetro del inductor de turbina: 64,8 mm
Diámetro del exductor de turbina: 55,8 mm
Turbina A/R: 0,63
Salida de escape de la turbina: 79 mm
Entrada de escape de la turbina: 44,7 mm / 85,8 mm
Rodamiento: Rodamiento diario
Tipo de refrigeración: Refrigerado por aceite
Entrada de aceite: M12*1,25 y 2*M8*1,25
Salida de aceite: 2*M8*1,25
Wastegate: con Wastegate
Garantía: 1 años por cualquier defecto de fabricación
Característica:
-Material de alta calidad, carcasa fundida con acero duradero
-Aumenta significativamente la potencia del motor
-Aumentar la potencia del motor y la salida de par;
-Mantener la presión de la cámara de combustión y la carga de aire / combustible
-Construido con material de alta calidad
-Construido for durabilidad y resistencia
Nota Importante
* Reemplace, repare o vuelva a conectar el elemento del filtro de aire según el manual del fabricante for evitar daños en la rueda del compresor.
* Asegúrese de que la línea de drenaje de aceite esté más baja que el turbo.
* El coche de gasolina debe instalar un dispositivo de refrigeración por agua for evitar el sobrecalentamiento.
* Asegúrese de que la salida de escape esté bien sellada mediante soldadura.
Nota:
* El elemento del filtro de aire debe instalarse después de instalar la turbina
* Solo apto for modelos 1.5L-2.5L, si el desplazamiento excede el rango, la turbina se dañará
* Por favor, revise las especificaciones cuidadosamente antes de comprar. Si no está seguro acerca de esta información, no dude en contactarnos.
* Este es un turbo de aplicación universal, por lo que es posible que se requieran modificaciones for algunos vehículos.
* La Instalación profesional es altamente recomendada (no se incluyen instrucciones)
* Se necesitan piezas adicionales for una instalación completa. Consulte a un instalador turbo profesional for obtener más detalles.
————————————————————————————————
Application:

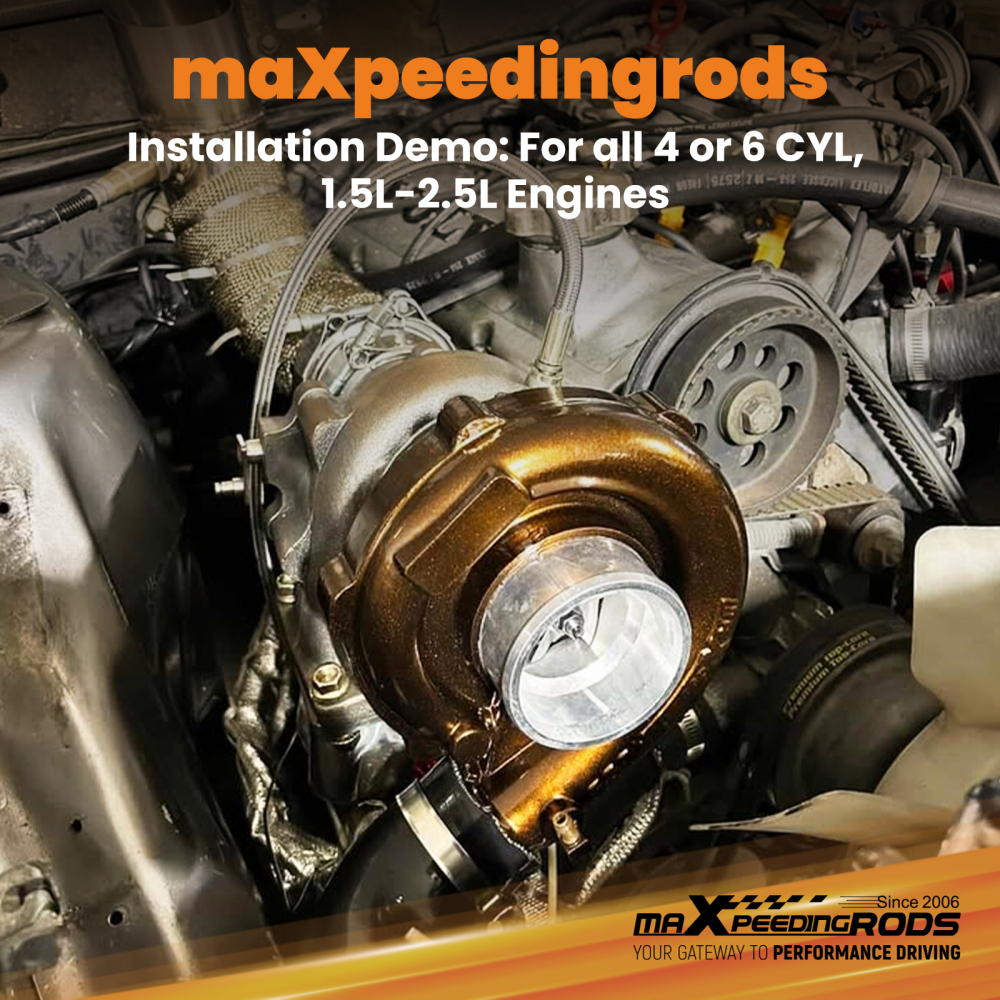

Perfect for all 4 or 6 CYL, 1.5L-2.5L engines
Horse Power: Capable of Boosting Horse Power up to 400+BHP
Specification:

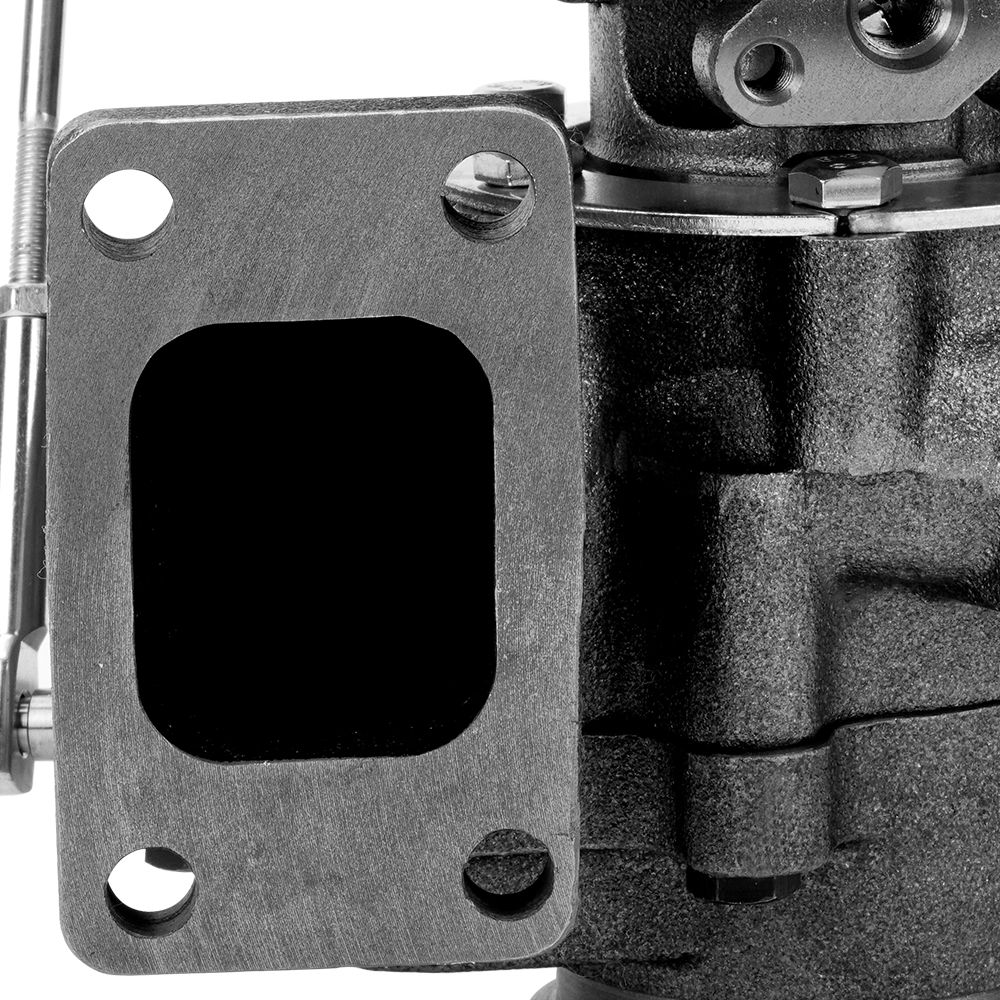

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

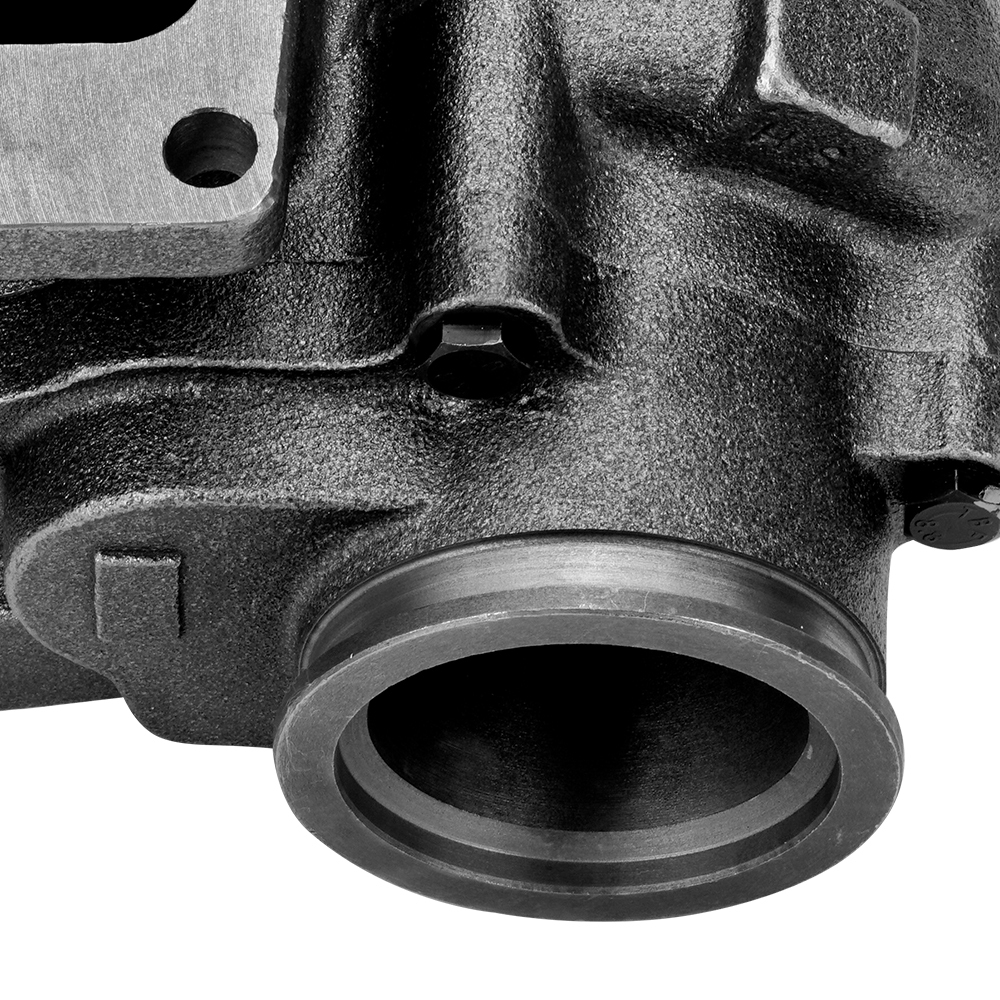

Exhaust Outlet Flange: V-Band Flange
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer Diamter: 64.8 mm
Turbine Exducer Diamter: 55.8 mm
Turbine exhaust outlet: 79mm
Turbine exhaust inlet: 44.7mm/85.8mm
----------------------
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer Diamter: 52.7 mm
Compressor Exducer Diamter: 76 mm
Compressor outlet: 78 mm

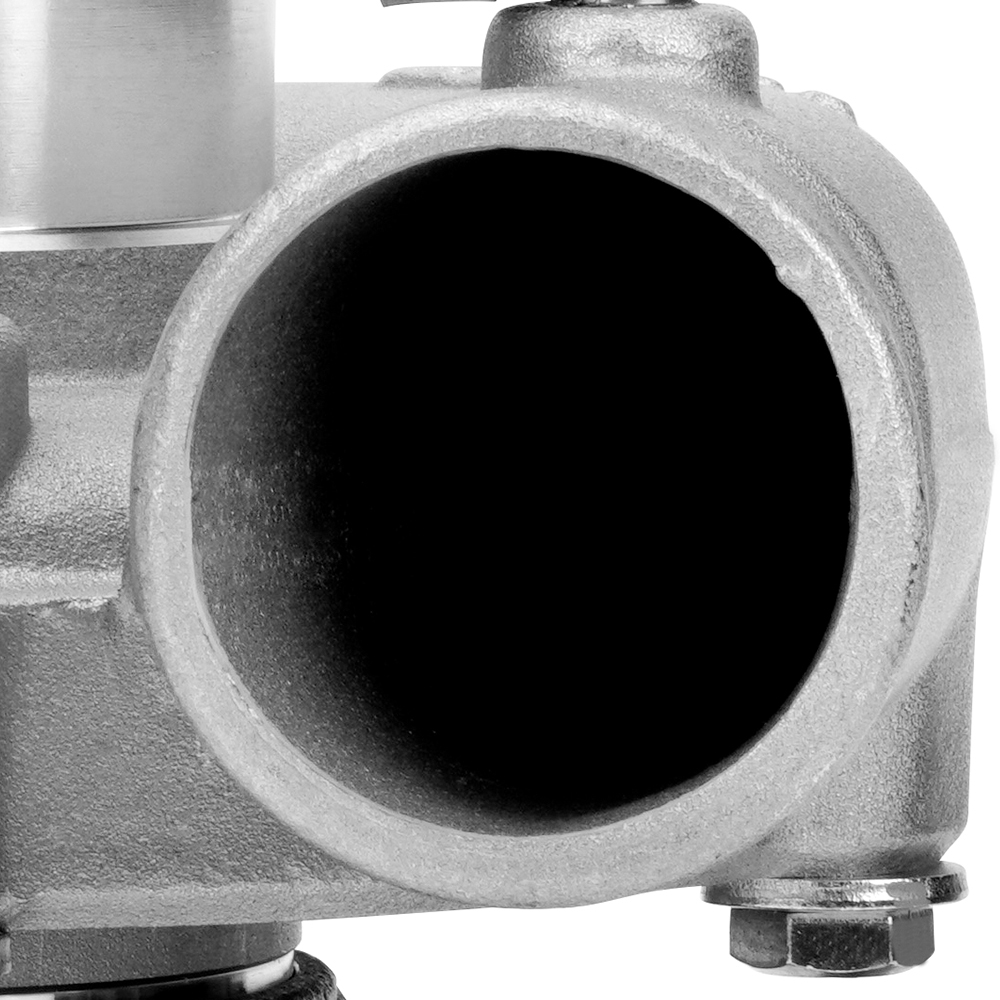

Compressor inlet: 51.5 mm
Bearing: Journal Bearing
Cooling Type: Oil Cooled

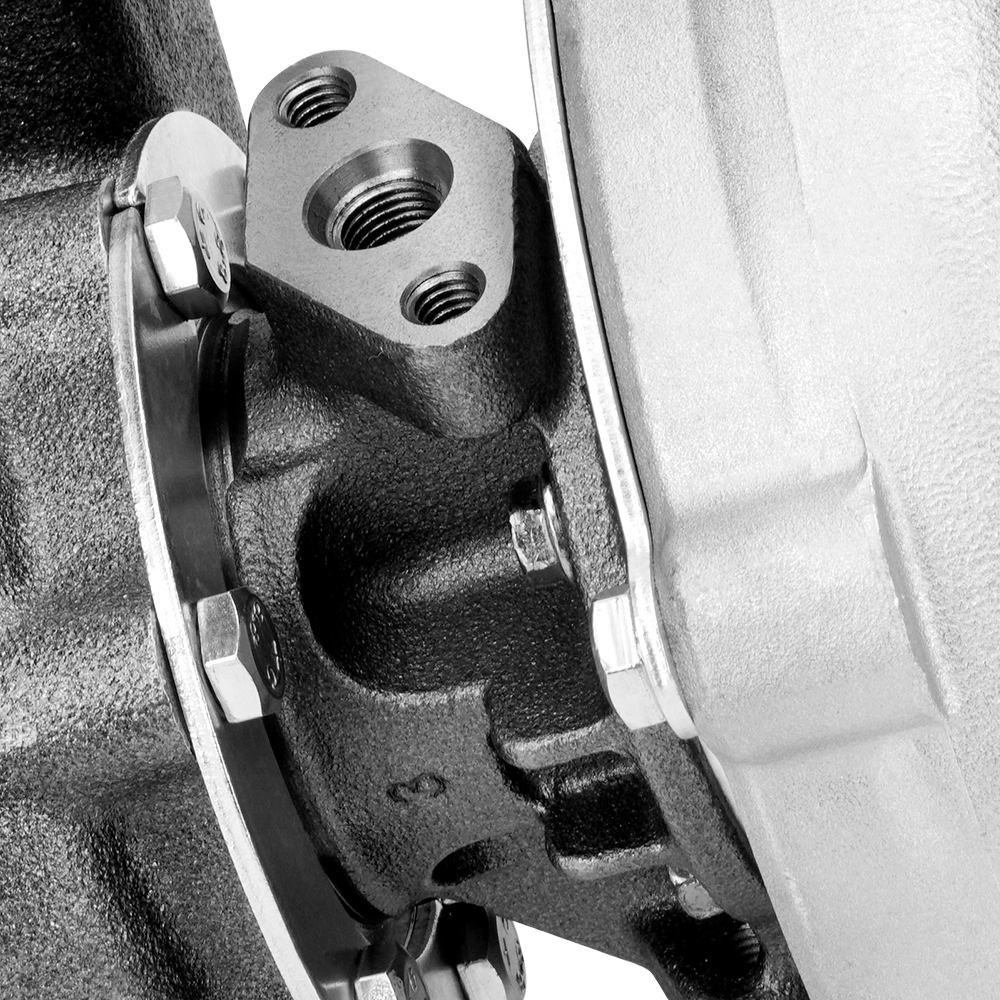

Oil Inlet: M12*1.25 & 2*M8*1.25

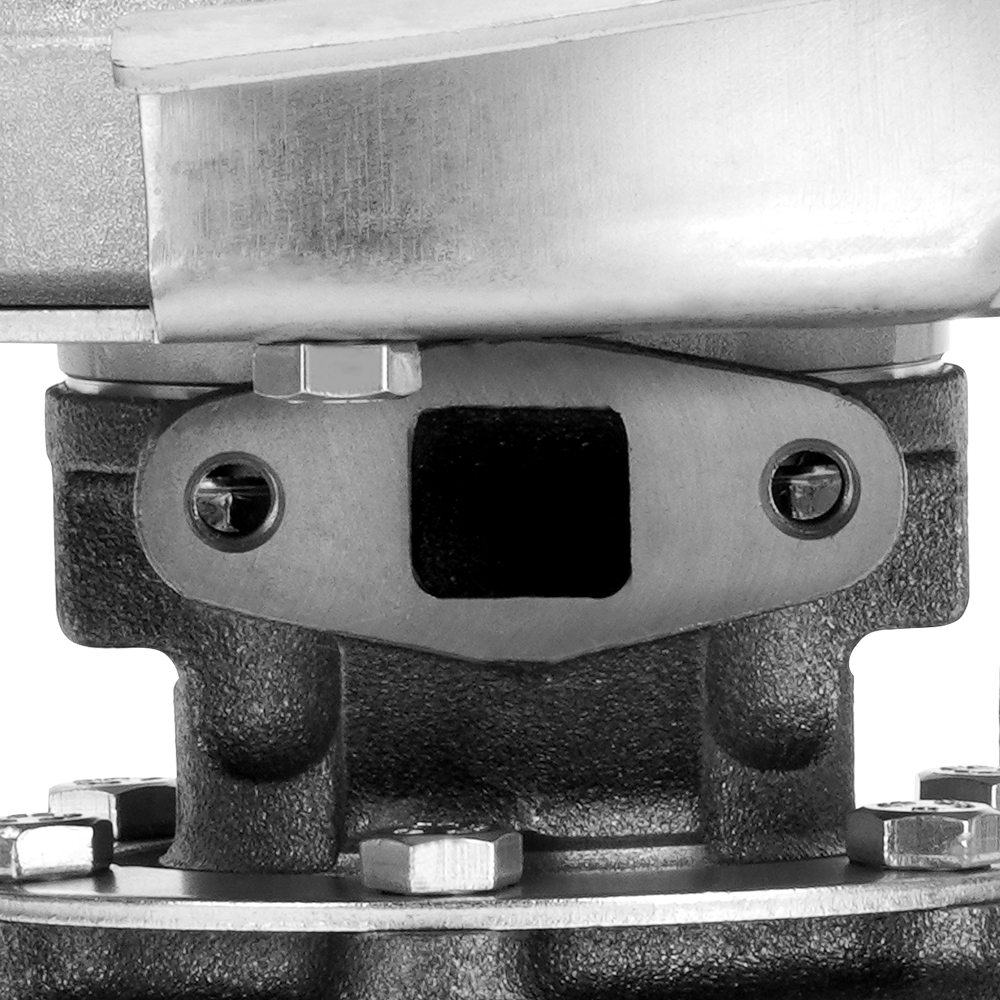

Oil Outlet: 2*M8*1.25

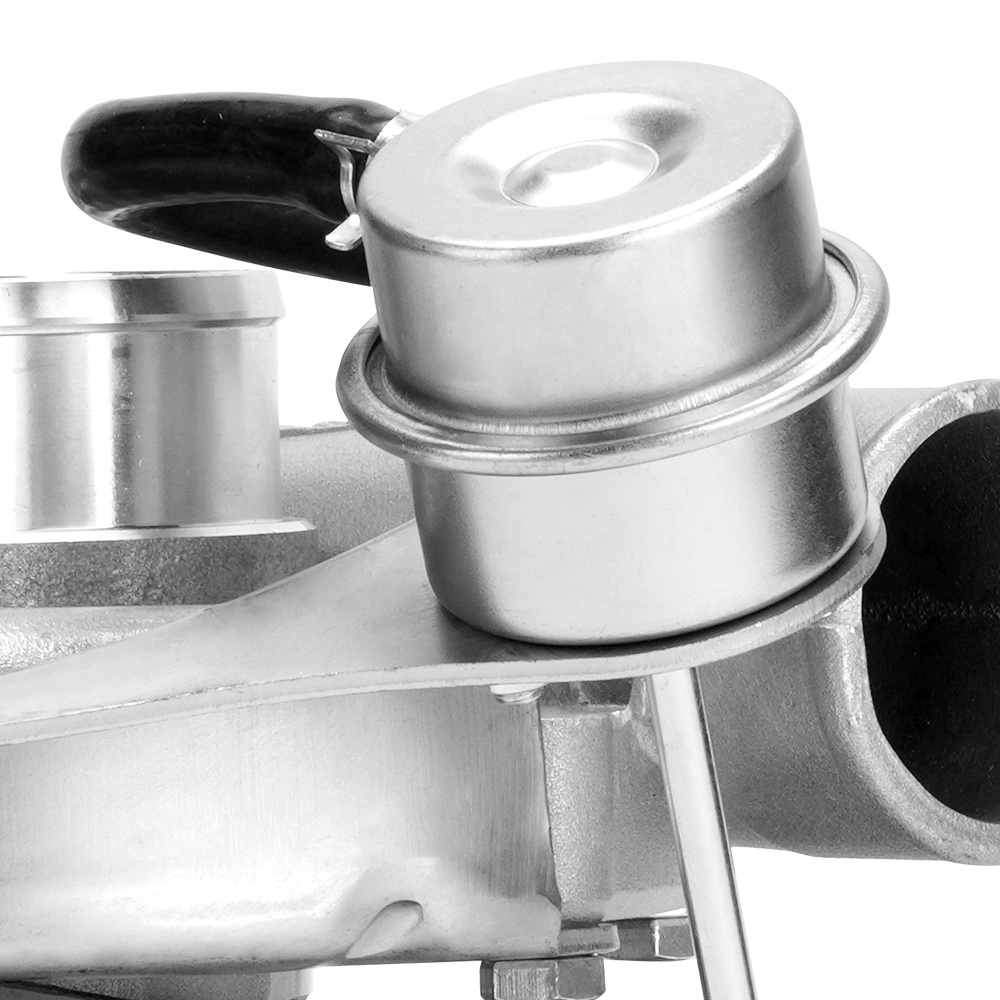

Wastegate:With Wastegate
Warranty: one year for any manufacture defects
Features:
-High Quality Material, Cast Housing with Durable Steel
-Boost Engine Horsepower Significantly
-Increase Engine Power and Torque Outpout;
-Maintain Combustion Chamber Pressure and Fuel/Air Load
-Contructed with High Quality Material
-Built for Durability and Strength
OUR ADVANTAGE:
1. 100% BALANCING TEST, This Turbocharger you will receive has been balanced using the VSR machine technology.
Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. All of the materials we use are the best materials,and we believe that only the best materials will guarantee the life of the turbo.
Turbine Wheel: the special K418 alloy to achieve stability under high temperatures up to 900 degrees Celsius, and never use K13 Inconel alloy.
Turbine housing: Ductile iron QT450-10 can withstand temperatures up to 700 degrees Celsius
Aluminum blades: Precision machining forging. The lightweight design enables reduced noise and increased response without compromising comfort or longevity
one year WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading one year warranty under normal use, unlimited mileage.
Important Note
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
Notice:
* The air filter element must be installed after the turbine is installed
* Only suitable for 1.5L-2.5L models, if the displacement exceeds the range, the turbine will be damaged
* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included)
* Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
