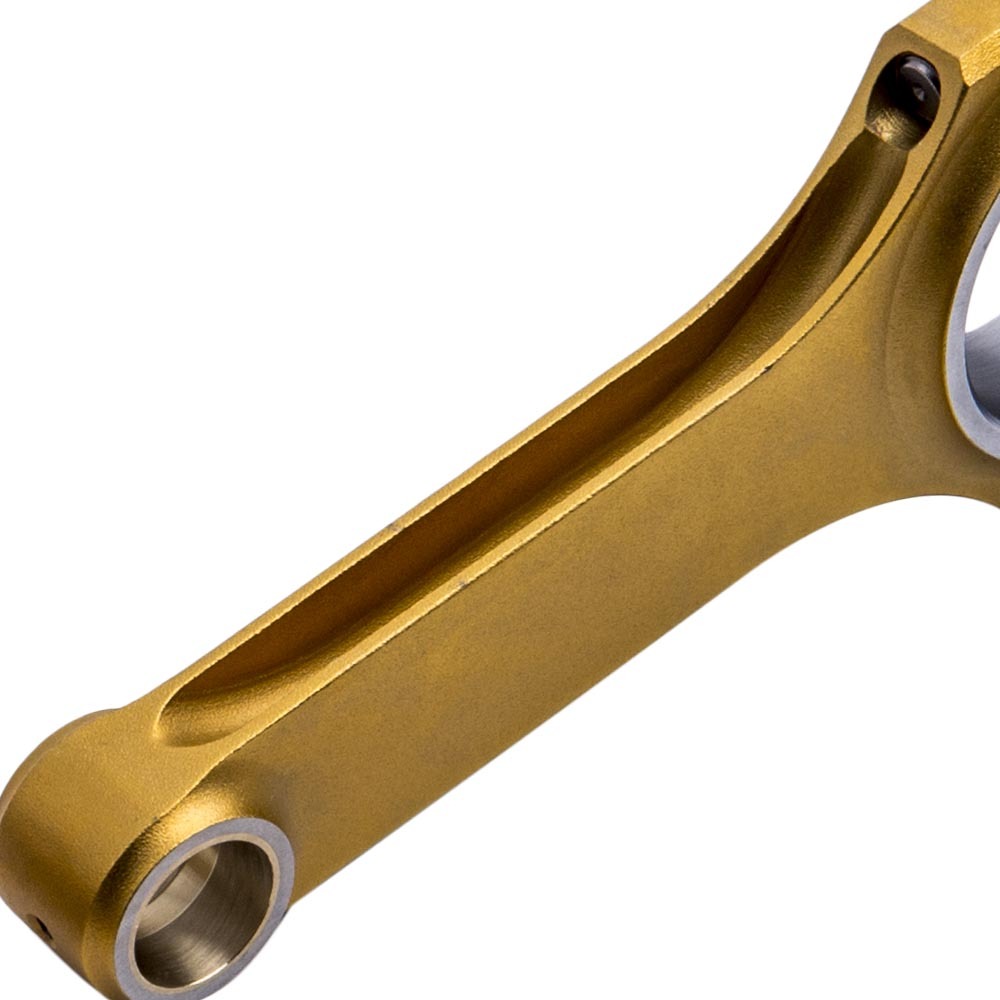

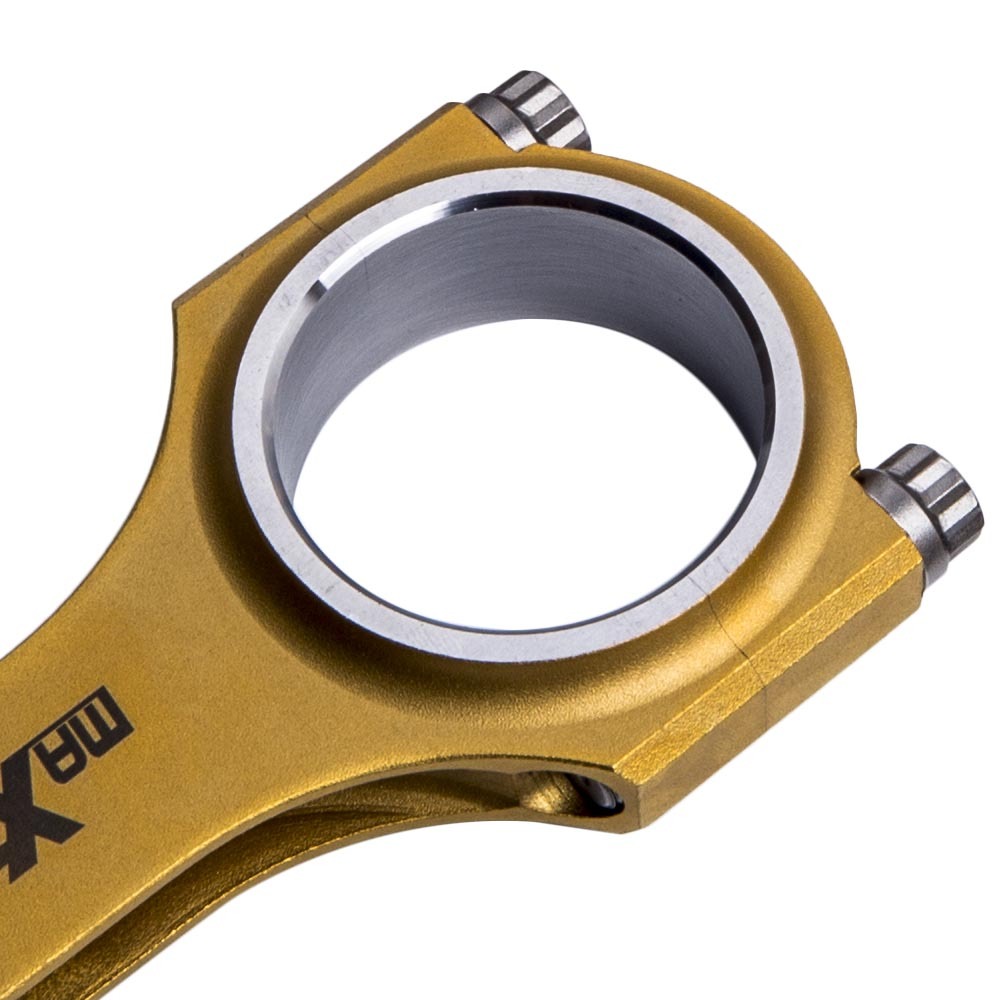

Titanizing EN24 Connecting Rods compatible para Audi A3 1.8T AGU AQA Performance Conrods

Please Carefully check the Size of the Rods in Specific and Description

Application

Compatible para VW Golf  Gti 1.8T 225 2.0 16V 20V

Compatible para Audi A3 A4 A6 S4 TT 1.8 Turbo

Compatible para Audi S3 A3 A4 A6 TT 1.8T

Compatible para VW Passat compatible para Golf Gti 1.8T 225 2.0 16V 20V

Compatible para Seat Ibiza 1.8T (AYP AQX)

Specification

Quantity: 4 pieces a set
Bolts: Including 3/8" ARP 2000 bolts (Note: Extra cost for upgrading to ARP L19 bolts)
Material: Titanizing 4340 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220.000/230.000 PSI

Torque: 48ft ≈ 65 NM

Top speed: 9000rpm

These rods are quality rods with TUV Certification. NOT bad steel manufactured rods like by other EBay sellers!!

Dimensions

Center to center length:  144mm / ≈ 5.66929 in.

Big end diameter: 50.6mm / ≈ 1.99212 in.

Small end diameter: 20mm / ≈ 0.7874 in.

Big end width:  24.9mm / ≈ 0.98032 in.

Small end width:  24.9mm  / ≈ 0.98032 in.

Features

- Titanizing Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

- Designed and processed by CNC machine.

- All big and small ends are finished with SUNNEN honing machine

- 100% X-rayed, sonic tested and magnafluxed

- Multi-stage heat treated

- Shot peened to relieve stress

- Come with the bronzed bushing suitable for the floating piston pin
