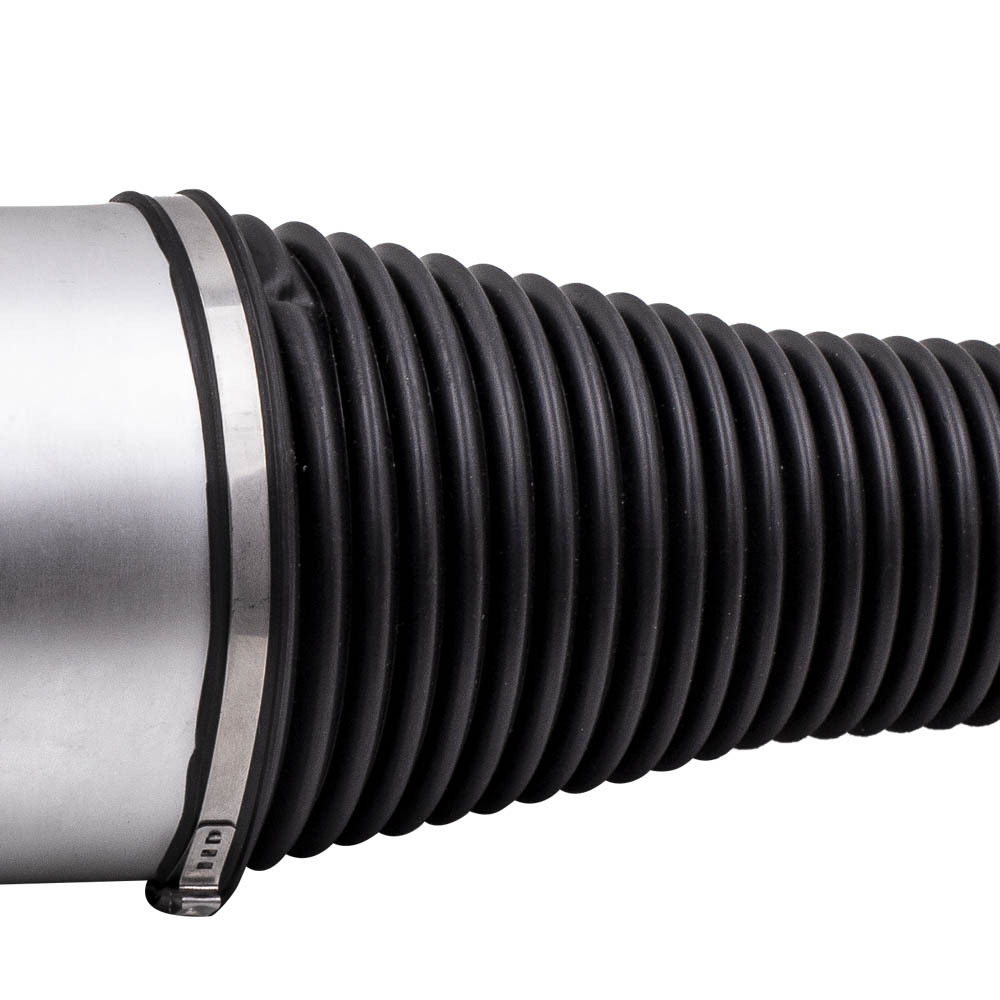

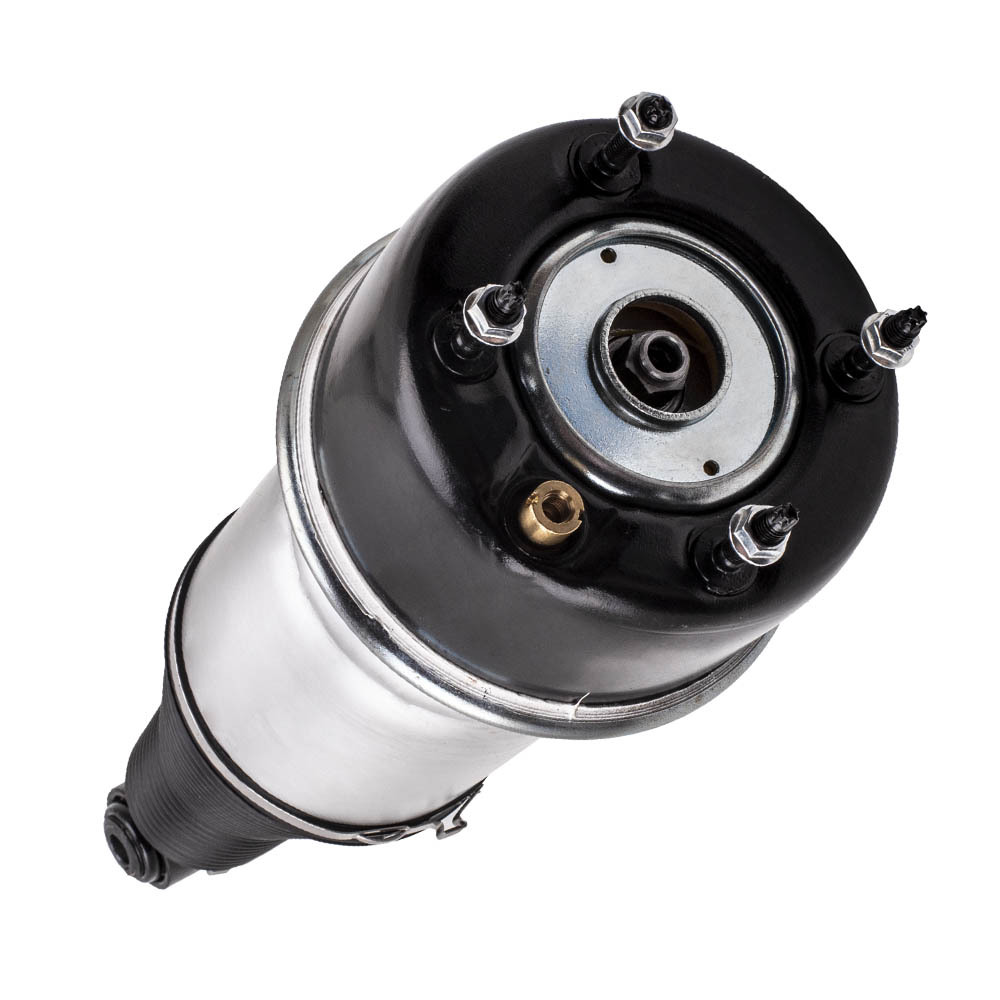

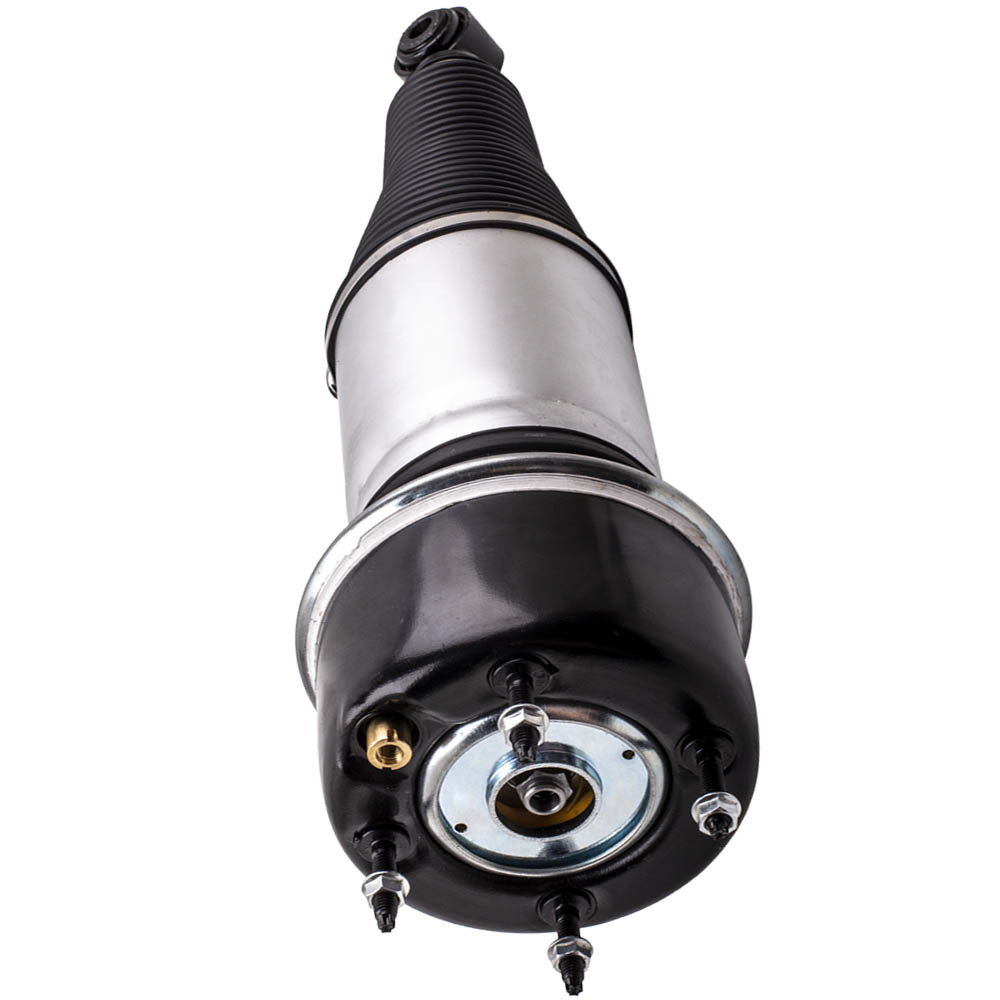

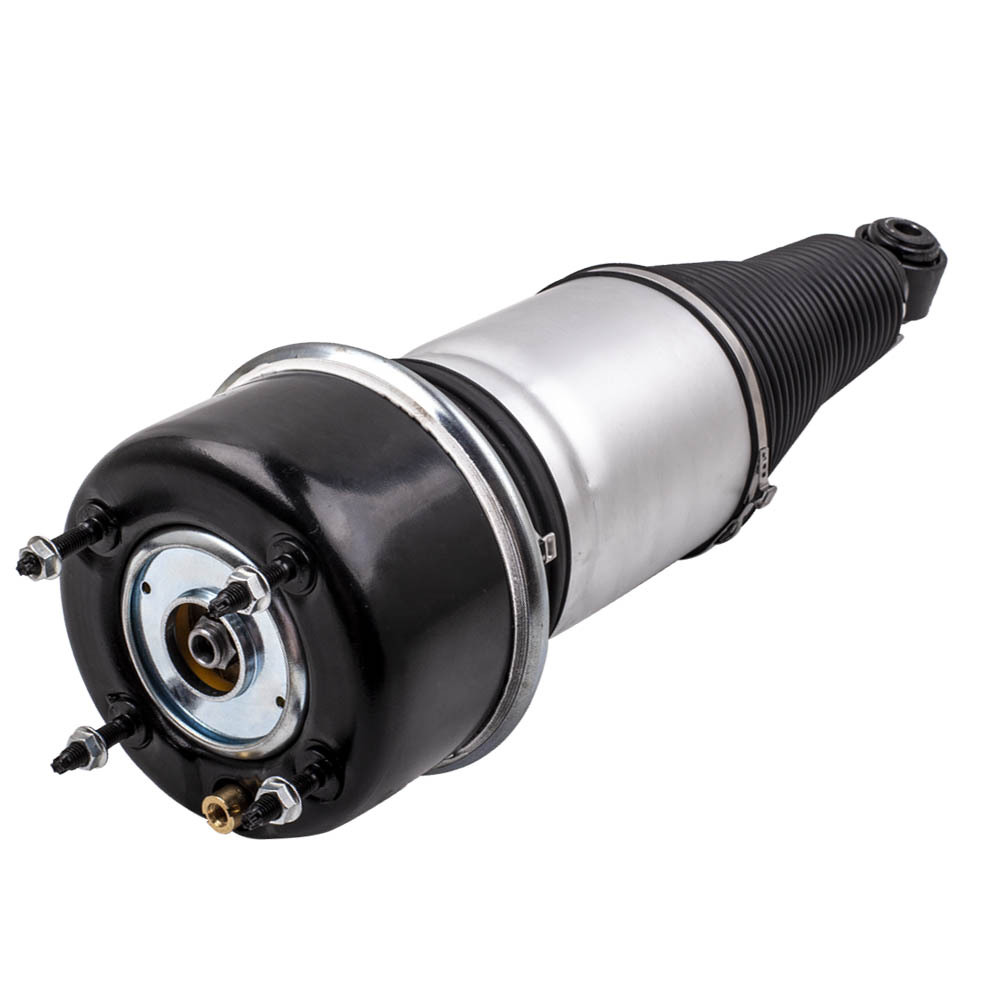

Trasera Suspensión Neumática compatible para Jaguar XJ Vanden XJ8 XJR 2003-2009 C2C41340

Application

Compatible para Jaguar XJ-Series X350 X358 2004-2009
Models: XJ, XJR, XJ8, Super V8, Vanden Plas

OE/Part number

C2C41340, C2C 41340, C2C41341, C2C 41341,
C2C41343, C2C 41343, C2C41344, C2C 41344,
C2C41346, C2C 41346, C2C23698, C2C 23698,
C2C24410, C2C 24410, C2C25694, C2C 25694,
C2C28407, C2C 28407, C2C28531, C2C 28531,
C2C31014, C2C 31014, C2C39765, C2C 39765

Specification

Condition: Brand New
Fitment Type: Direct Replacement
Quantity: 1pc
Placement on Vehicle:Rear right or left
Greasable or Sealed: Sealed
Shock Absorber Type: Gas Pressure
Shock Absorber System: Double pipe
Length, width and height (in/cm): 29.1*8.1*8.1 / 74*20.5*20.5
Weight: 8.22 kg
Stroke: 80mm (Max. 515mm/Min. 435mm)
Operating Pressure : ≤2.0Mpa
Temperature range：≤+70° , ≥-40°

Feature

PREMIUM MATERIALS & TECHNOLOGY
Multi-ply air spring sleeve reduces noise.
Heavy-duty crimping rubber and connection compatible para seat withstands 2 MPa+ pressure, no detachment.
Polyurethane bump stop is durable, abrasion-resistant.
Nitrile rubber seals are oil-resistant and aging-resistant.
The connecting end is made of high-strength ST16 steel and integrally stamped.
6063 aluminum piston (≥3 MPa strength).
TPV dust cover: better flexibility and lifespan than TPE.
20μm chrome-coated piston rod for wear resistance.

RIGOROUS TESTING
100% Air tightness testing.
24-hour air tightness test ≤0.02 MPa.
Stress test over 5,000,000 times: durable and safe.
Operates in -58°F (-50°C) to 302°F (150°C) extremes.

TRUSTED QUALITY
Manufactured to strict quality control standards and compliant with ISO 9001.
Precise OE fit and performance.
CNC machined components.

PERFORMANCE & COMFORT
Restores ride height and enhances ride quality.
High compressive strength and sound insulation for a smooth, quiet drive.
Efficient heat dissipation for reliability.
Easy to install, with no special tools required.

INSTALLATION TIPS
Replace the old air fitting with a new one, insert the air tube into the air fitting cap to establish a proper connection.
