Kit de bolsas de suspensión neumática compatible para Toyota Hilux 4WD 2015- GGN125 GUN126

Rear Air Suspension Leaf Spring Bag Helper Kit  compatible para Toyota Hilux 4WD 2015-

Application:

Compatible para Toyota Hilux 4WD 2015-  GGN125 GUN126

Only fit compatible para Toyota Hilux 4WD new models that began in 2015

No drilling required and also fits vehicle with 2 inch suspension lift.


Specifications:

Condition: Brand New

Placement on Vehicle: Rear left and right

Charge: 5000 LB / 2268 KG

Material: Cured Natural rubber

Recommended working range - 5psi - 160psi

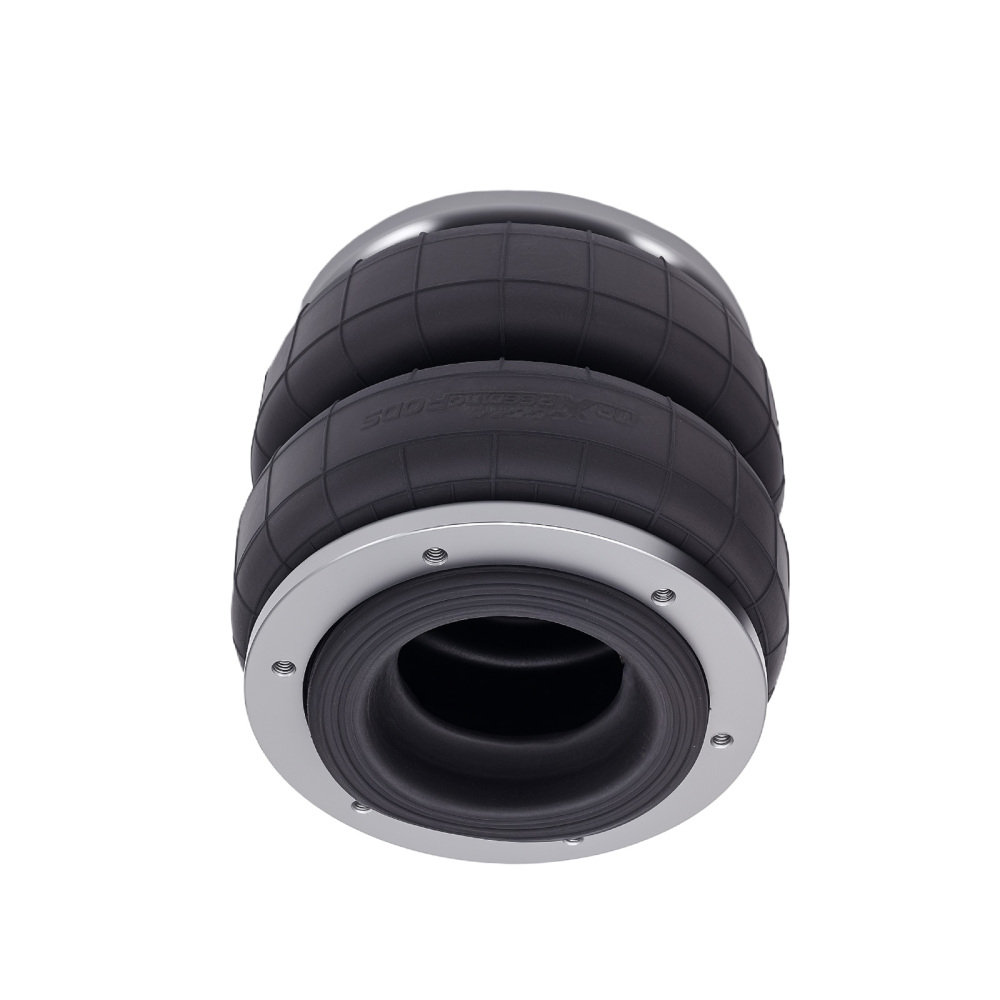

Air spring bags---

Design height: 152mm
Stroke:  110mm
Max. Extended:   175mm
Min. Compressed:  65mm
Minimum height of whole kit: 206 mm
Maximum height of whole kit: 316 mm

Package Included:

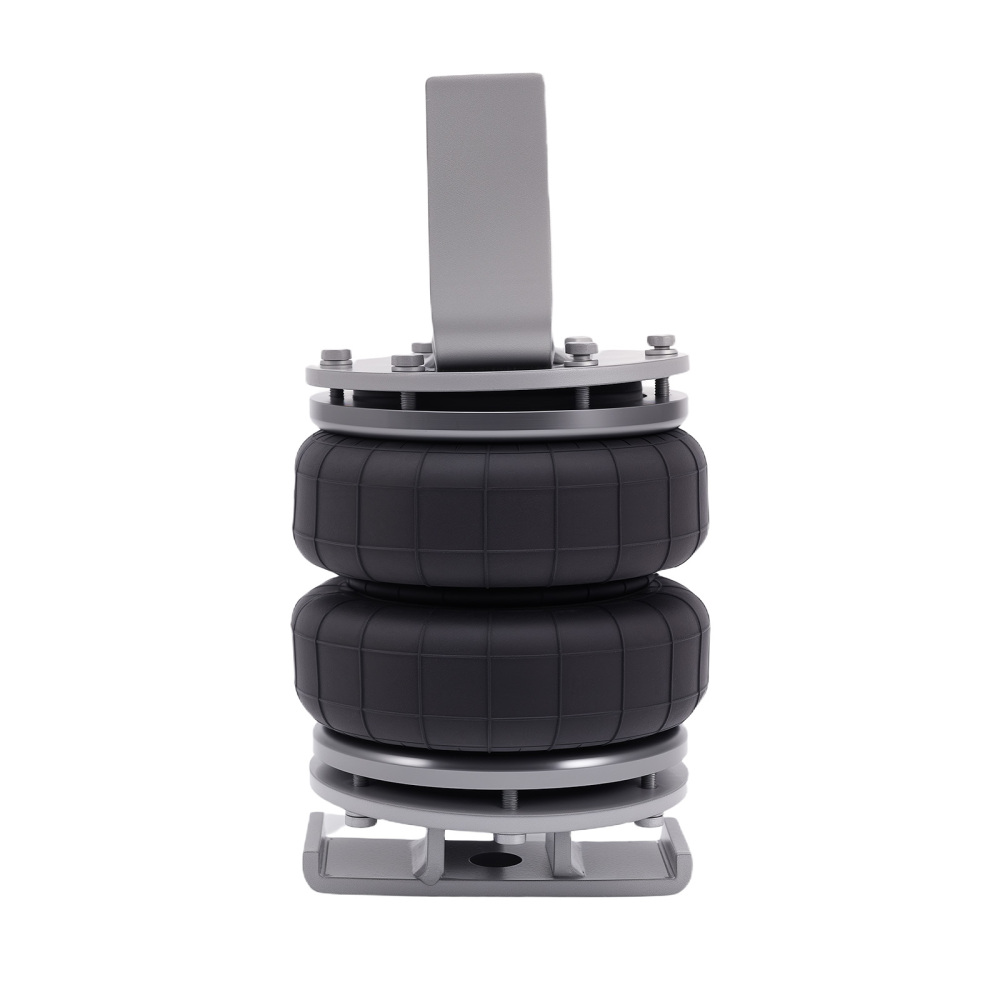

- 2x Heavy Duty Double Bellow Air Ride Suspension bags

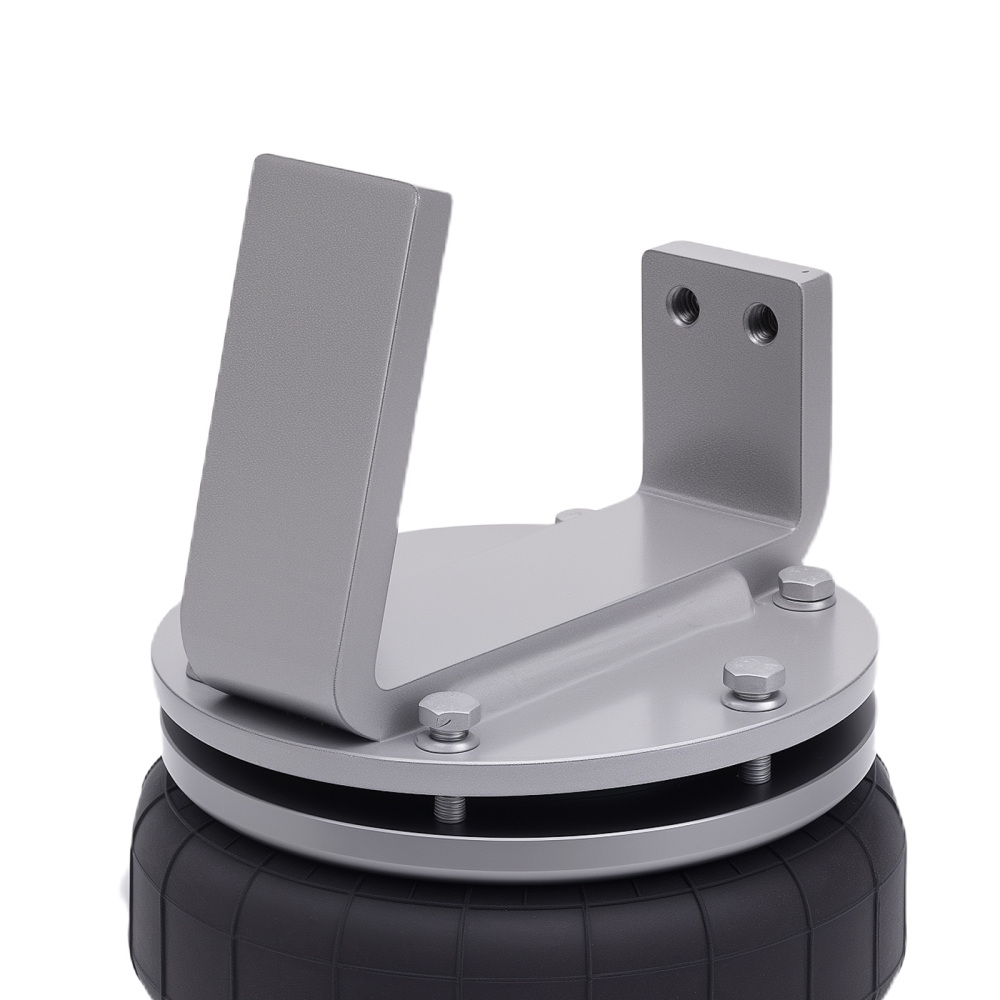

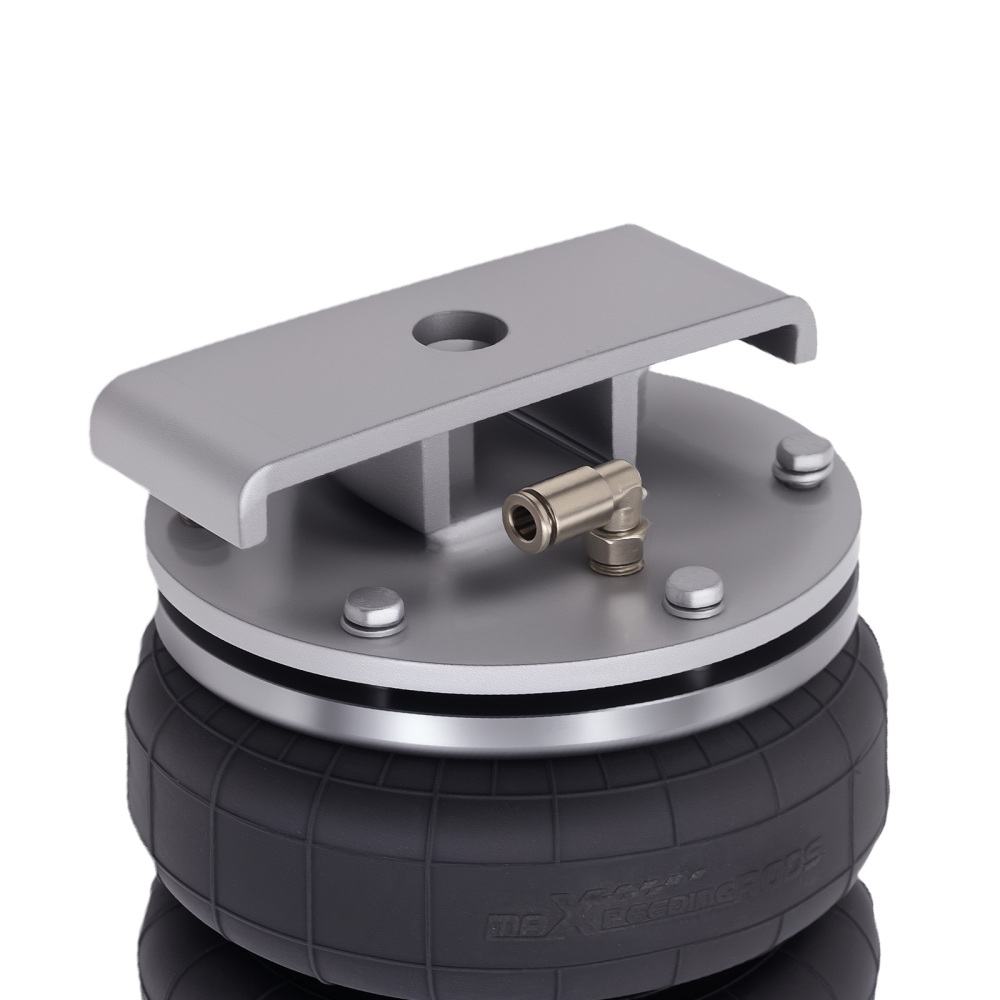

- 4x Upper and lower mounting brackets

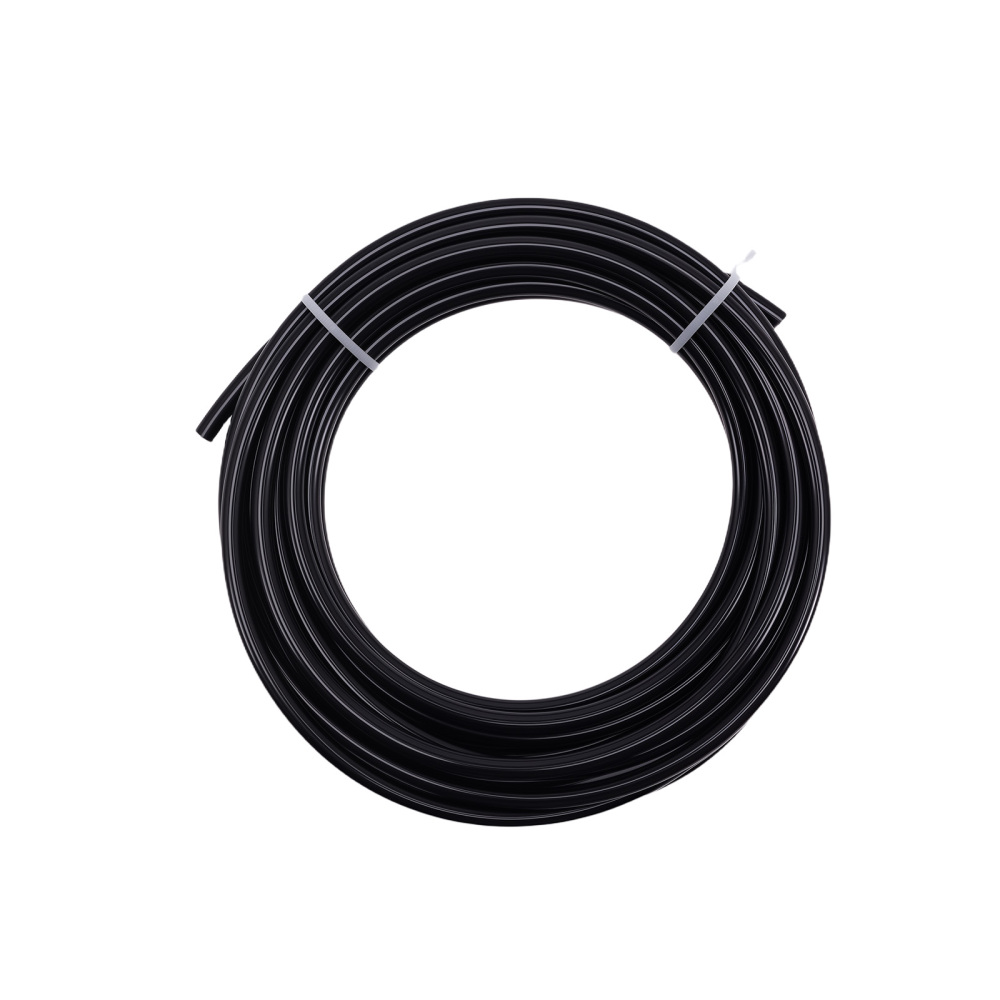

- 1x Air line 5m
- Mounting Hardware like the picture

Features:

1. Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.
2. Designed to relieve the pressure usually placed on your vehicle's leaf springs when your vehicle is carrying heavy loads
3. Supplied in kit form, easy to install
4. Effectively help improve steering and vehicle handling
5. Built to strict quality control standards, tough and durable
6. Designed for Comfort Suspension.
7. Bring better handling and ride comfort.

Notice

- Instruction is not included. Professional installation is recommended.

- Contact us please for whatever we can help.
