Application:

Compatible para Hyundai Gamma 1.6 LPI L4FC L4FA 1.6 L engine
Compatible para Hyundai Kona / Elantra / i30 / i20/ i40/ Veloster & Compatible para Kia Forte / Soul / Sportage/ Accent
Compatible para Hyundai Creta/Elantra/Getz /HB20 /ix35/Compatible para Kia Carens/Rondo /Compatible para Kia Cee'd
Compatible para Kia Forte/Cerato Rio/Compatible para Kia Stonic / Compatible para Kia Venga

Specification:

*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 4 Pieces as showing in picture

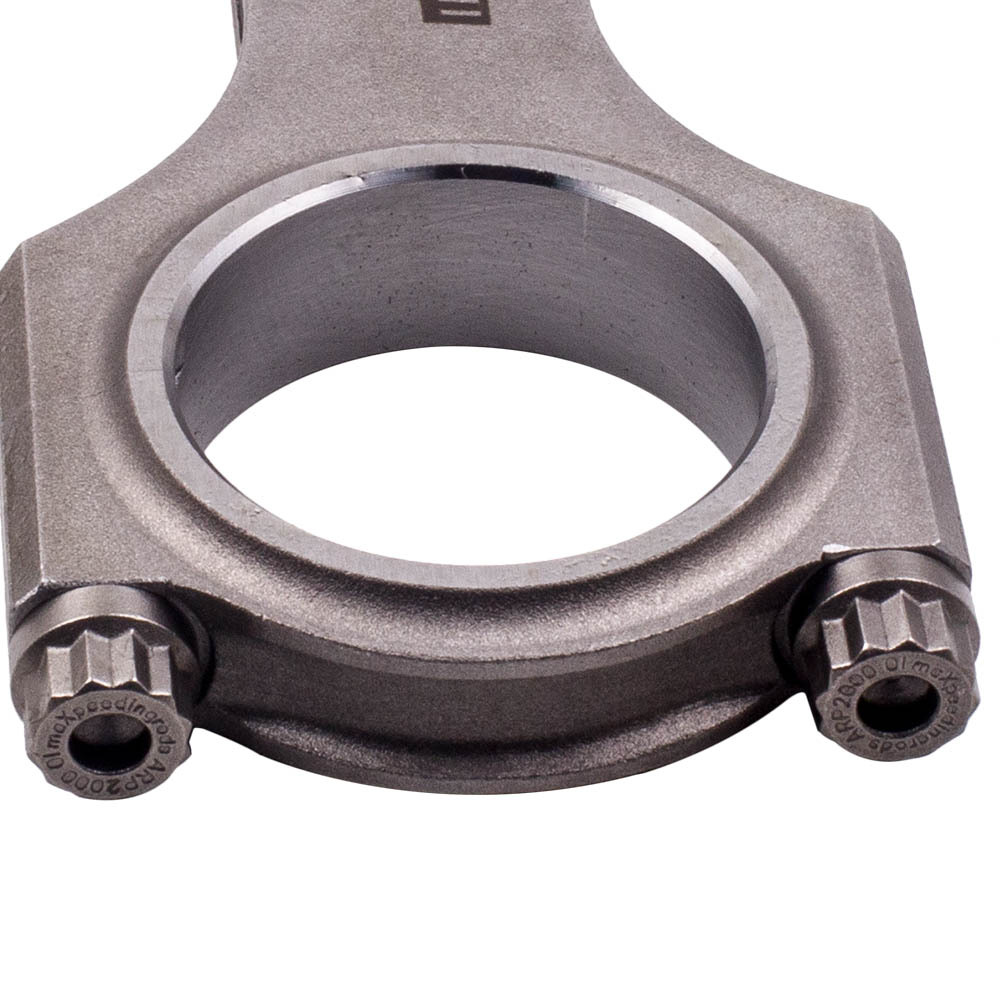

*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*20CM*11CM

Dimensions:

Center to center length: 130.8mm
Big end diameter: 45mm
Small end diameter: 20mm
Big end width: 18.9mm
Small end width: 18.9mm

Feature:

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

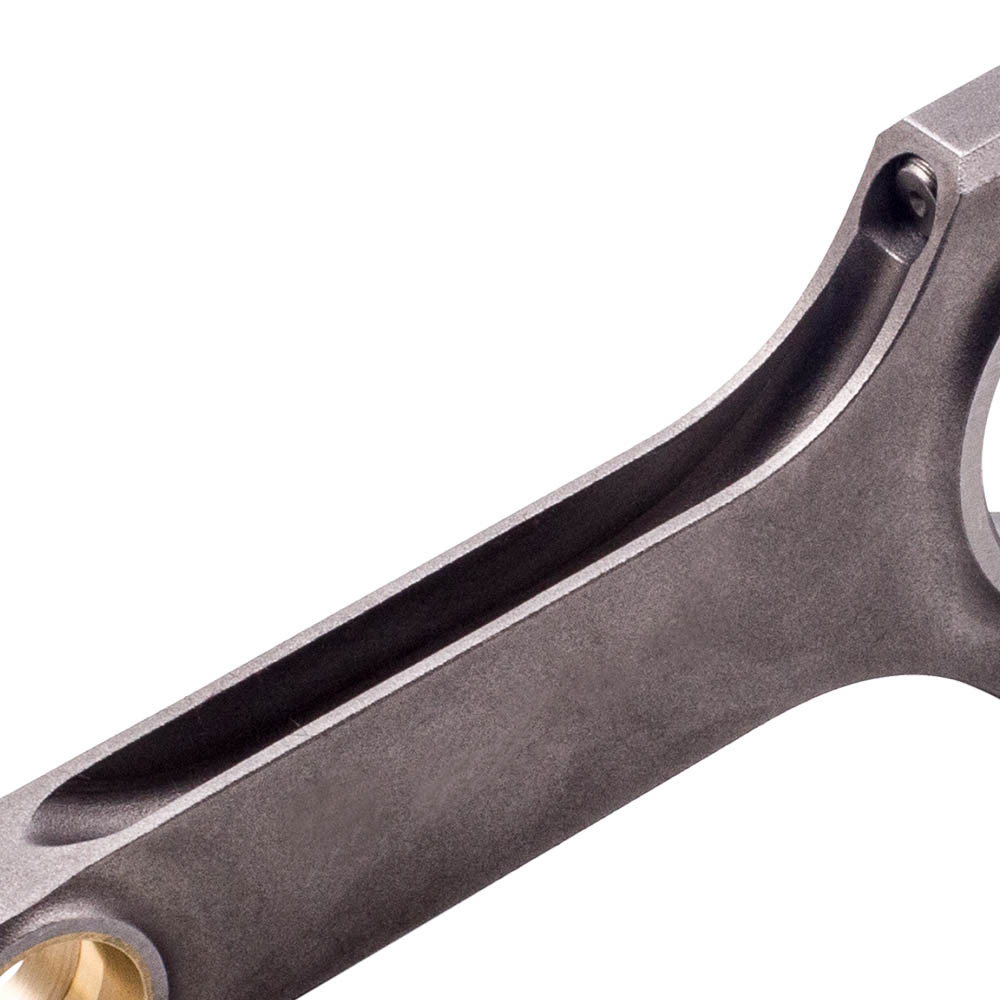

4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Notes

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
