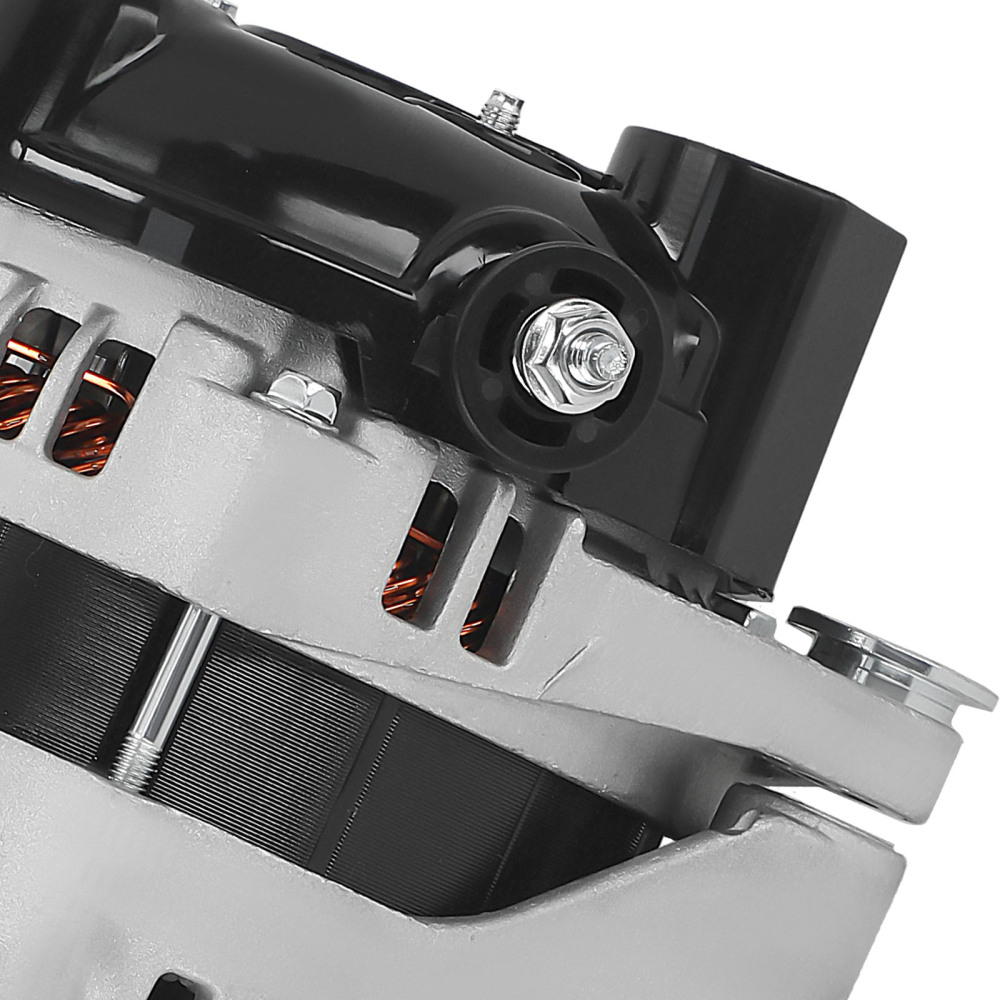

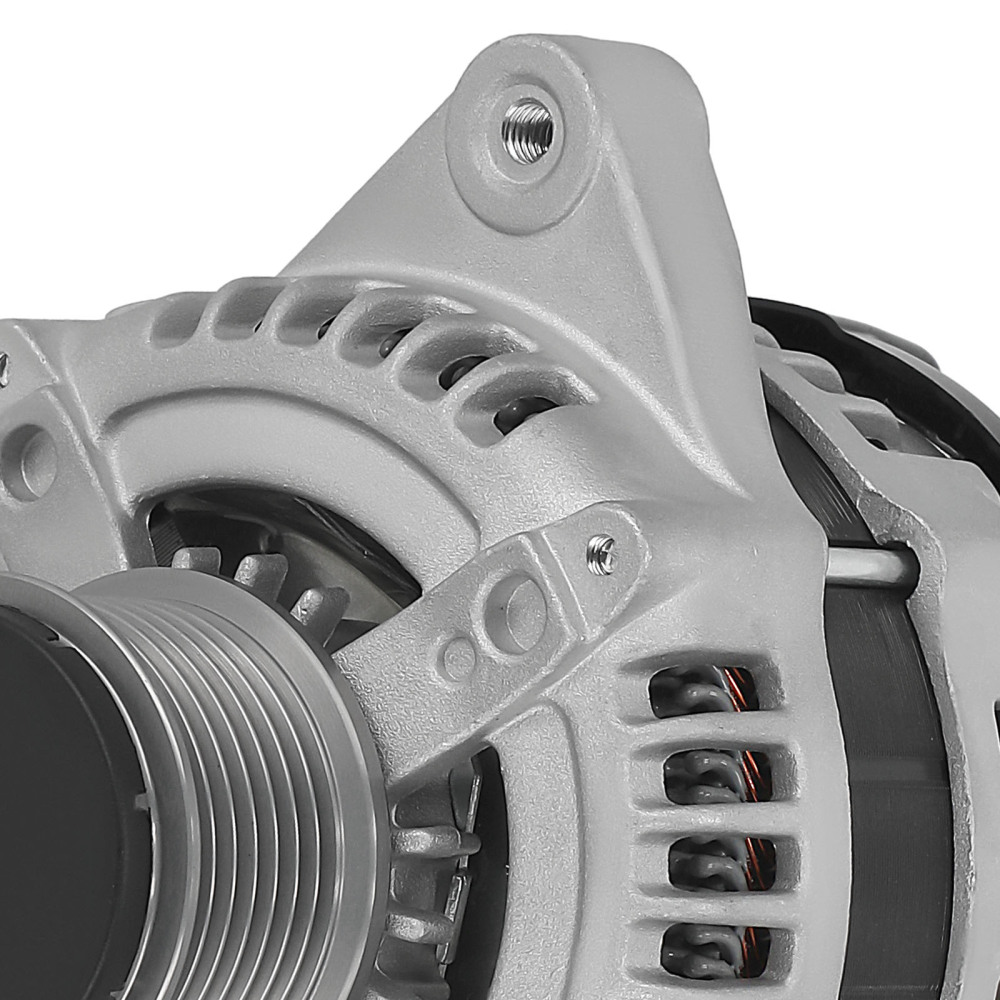

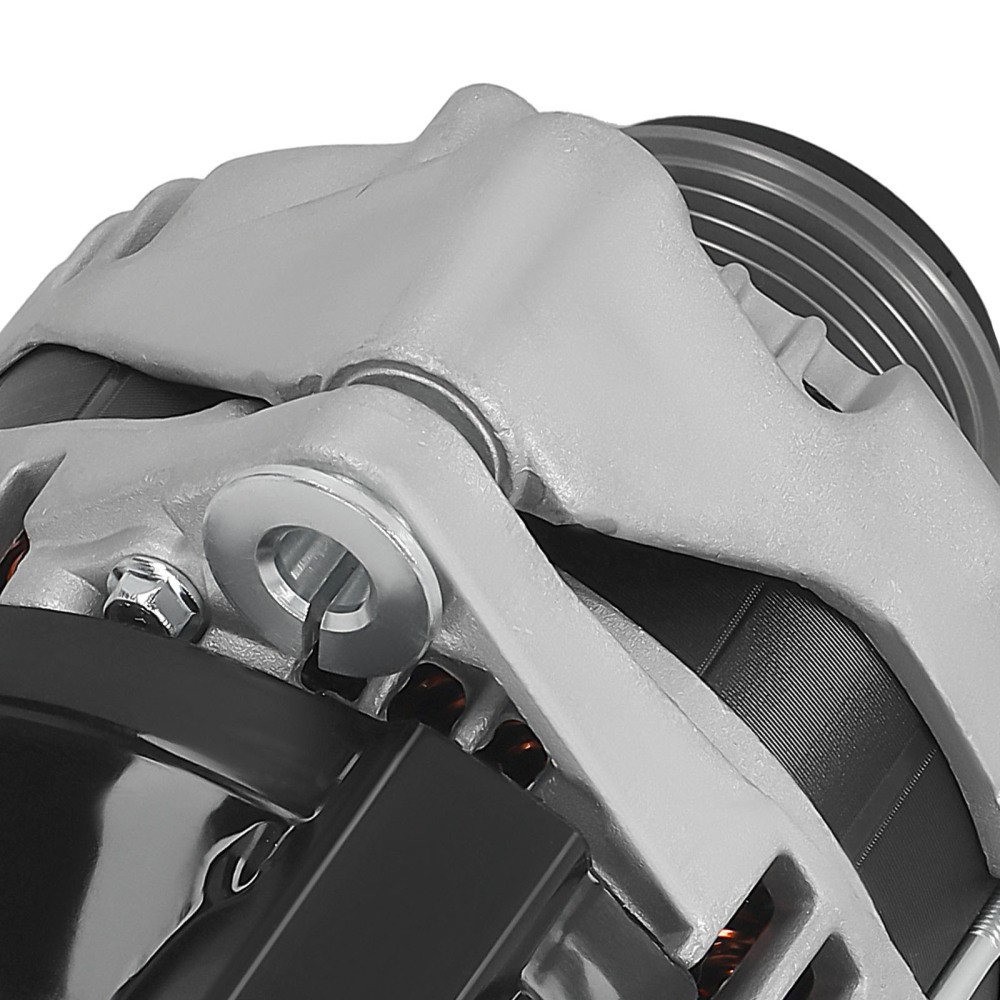

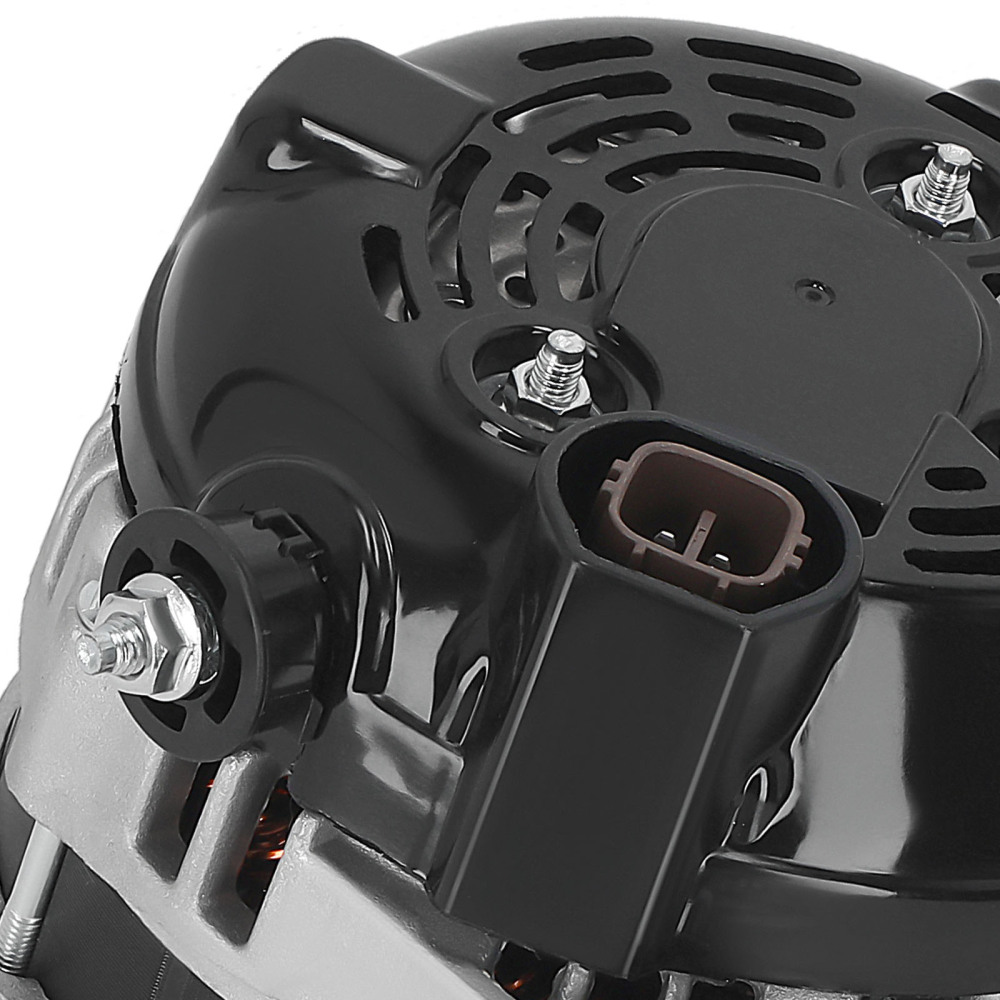

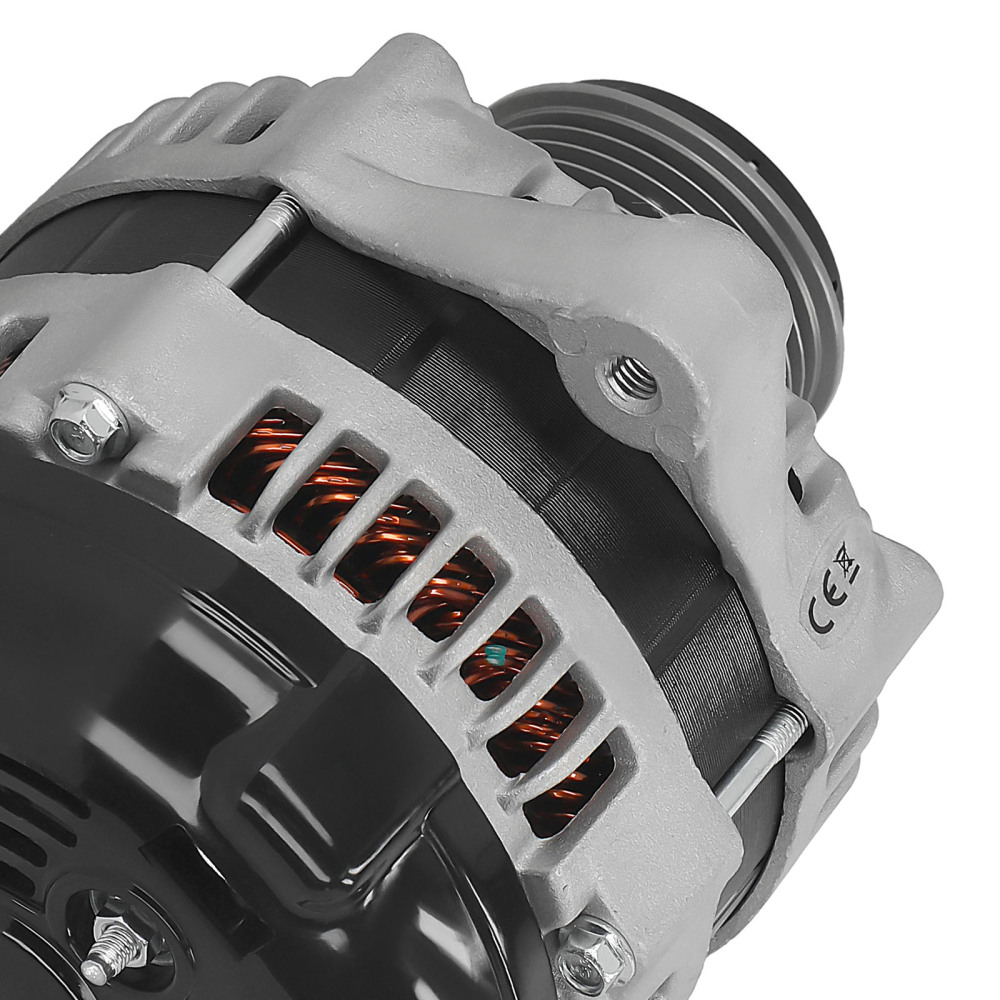

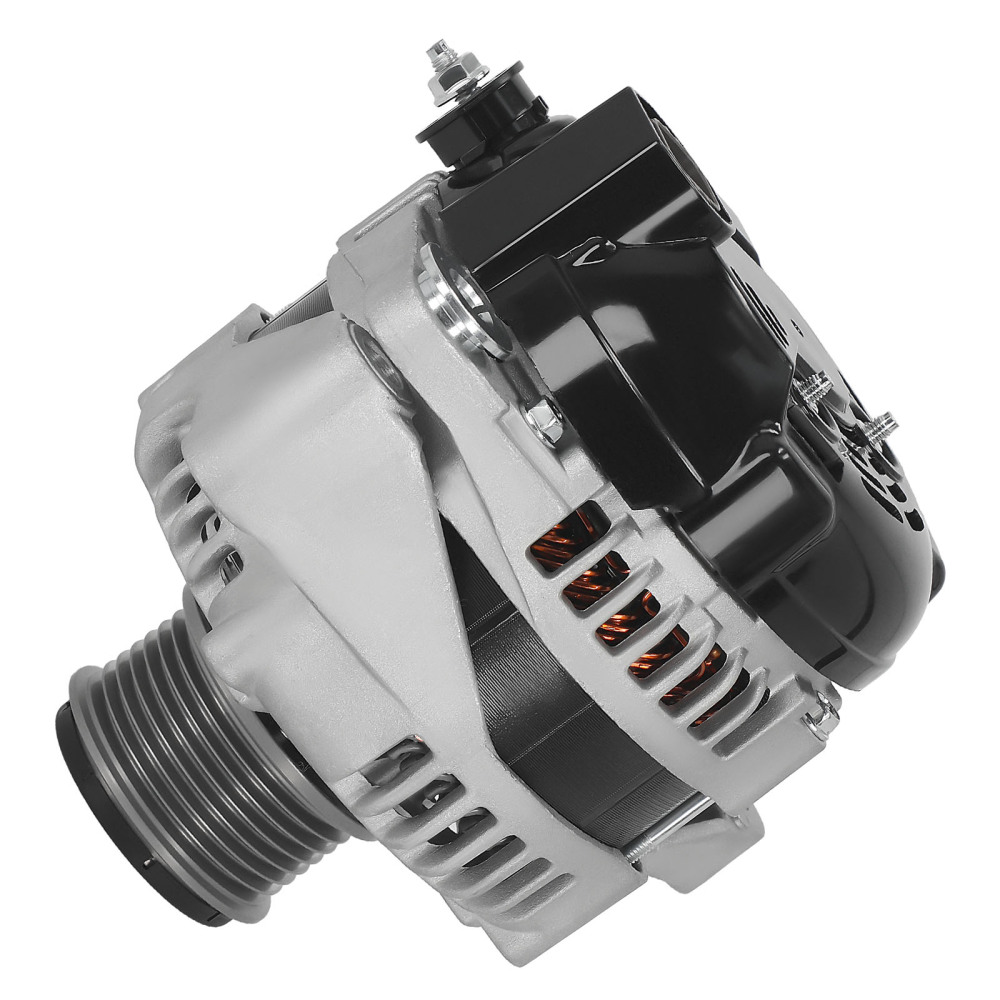

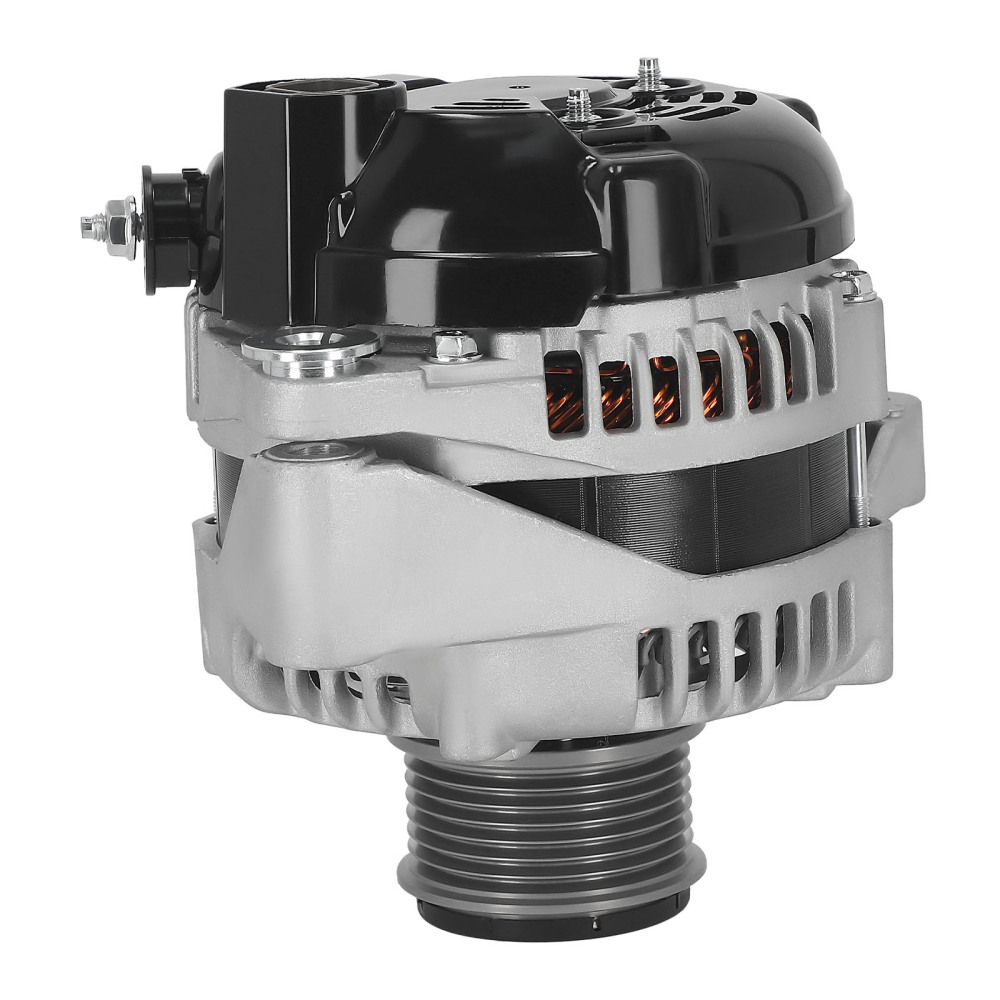

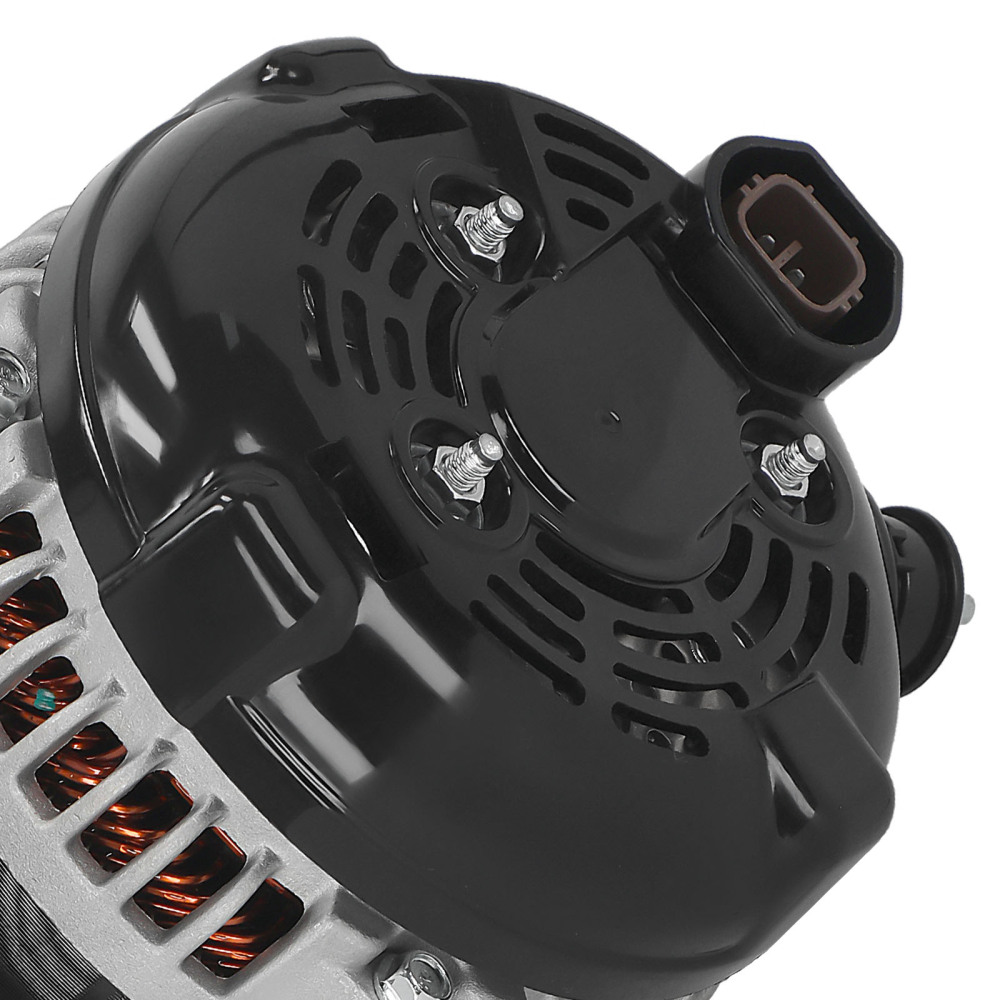

Alternator compatible para Toyota Hilux D4D 3.0L Turbo Diesel 1KD-FTV KUN16R KUN26R KZN156

Application

Compatible para Toyota Hiace KDH200 2.5L Turbo Diesel - 2KD-FTV 08/04 - 07/06
Compatible para Toyota Hiace KDH201 3.0L Turbo Diesel - 1KD-FTV 08/06 -
Compatible para Toyota Hiace KDH220 2.5L Turbo Diesel - 2KD-FTV 08/04 - 07/06
Compatible para Toyota Hiace KDH221 3.0L Turbo Diesel - 1KD-FTV 08/06 -
Compatible para Toyota Hiace KDH222 2.5L Turbo Diesel - 2KD-FTV 08/04 - 07/06
Compatible para Toyota Hiace KDH223 3.0L Turbo Diesel - 1KD-FTV 08/06 -
Compatible para Toyota Hilux KUN16 3.0L Turbo Diesel - 1KD-FTV 02/05 - 06/15
Compatible para Toyota Hilux KUN26 3.0L Turbo Diesel - 1KD-FTV 02/05 - 06/15
Compatible para Toyota Landcruiser Prado KDJ120 3.0L Turbo Diesel - 1KD-FTV 11/06 - 10/09
Compatible para Toyota Landcruiser Prado KDJ150 3.0L Turbo Diesel - 1KD-FTV 11/09 - 05/15
Compatible para Toyota Landcruiser Prado KDJ155 3.0L Turbo Diesel - 1KD-FTV 11/09 - 05/15

Manufacturer Part Number

104210-3410

Specifications

Voltage 12 V
Amps 130 A

Adjustment Hole (mm)    M8x1
Pivot Hole (mm)    10
Adjustment to Pivot (mm)    165
Pivot Length (mm)    58
Inside Feet To Feet (mm)    N/A

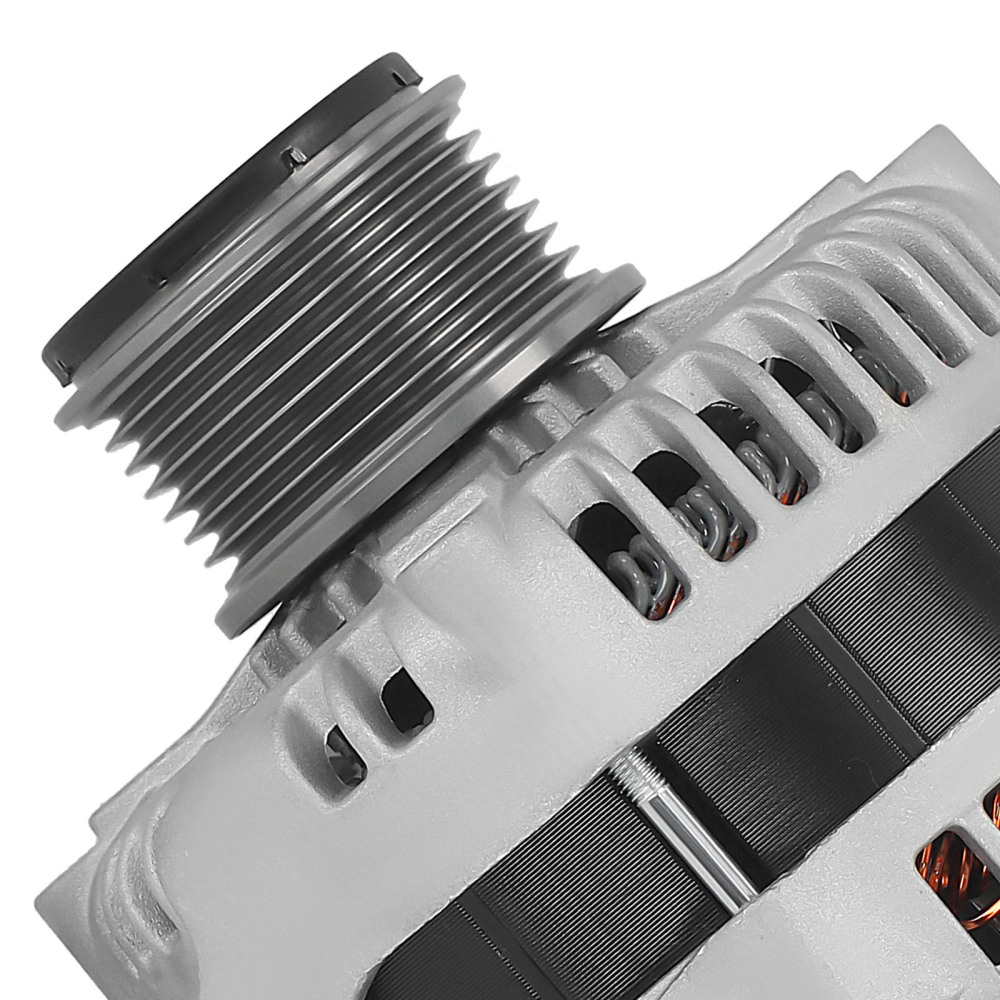

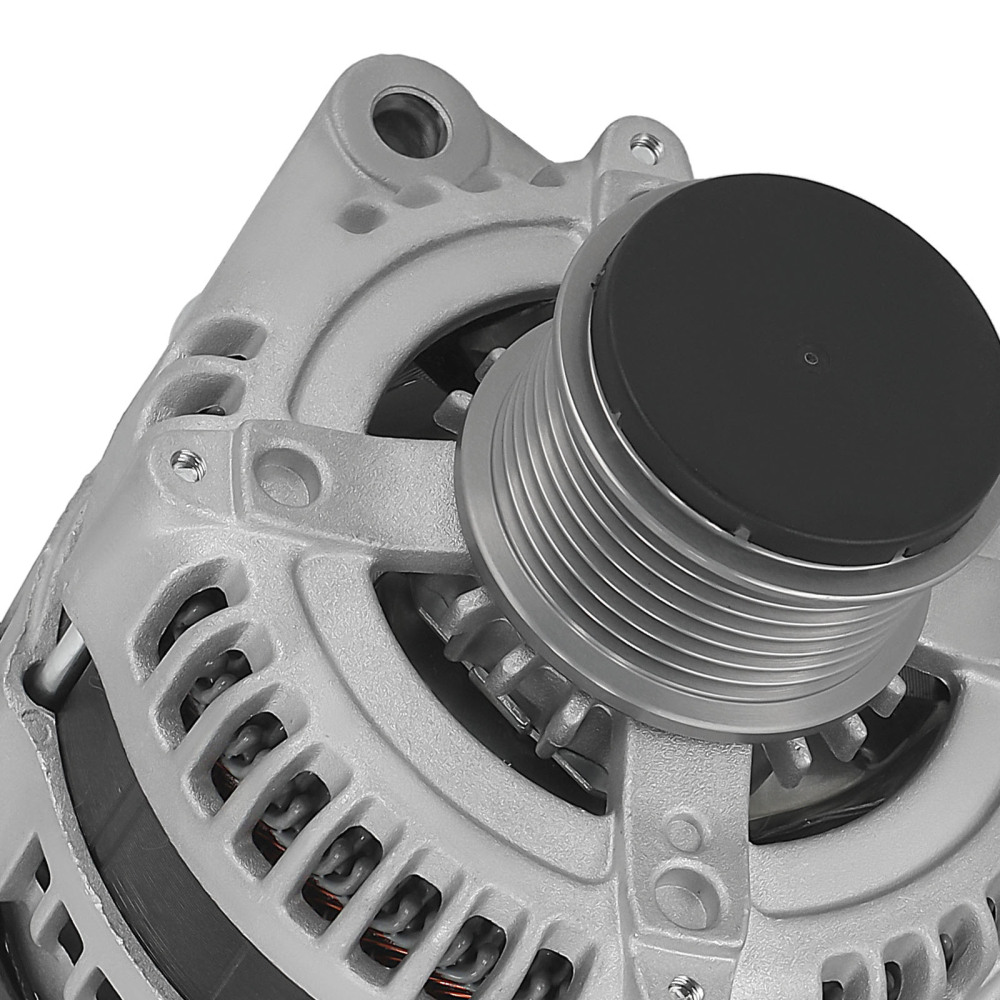

Pulley (mm)    63
No Of Grooves    7PV

Condition

Brand New

Notice
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
